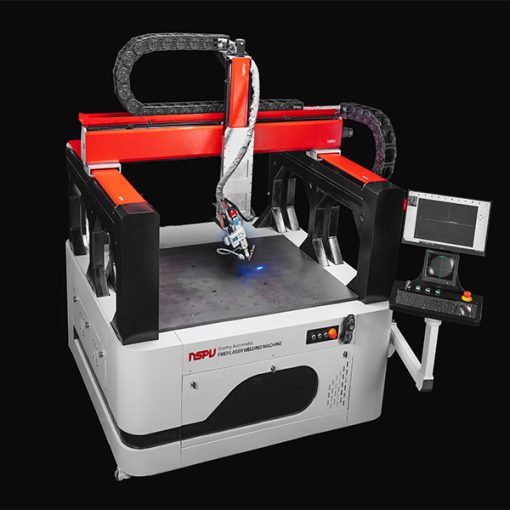

Gantry laser welding machine (gate)
ویژگی های محصول
- Equipped with 5 Motion Axes in a Gantry Configuration
- Capability to Weld Inside Parts with a Depth of 30 cm
- Motorized Angle Adjustment of the Welding Head
- Adjustable Weld Spot Diameter
- Equipped with a Foot Pedal for Welding Control and Handwheel for Precise Movement of Axes
- Equipped with an Alarm System for Device Protection
- Option to Select Various Weld Shapes
- High Speed and Accuracy During the Welding Process
- High Precision Welding of Miniature and Small Parts
- Real-Time Display of Control Values During Automatic Welding Process
- Customizable Motion Axes
Technical specifications of gantry laser welding machine
|
VGALW-5A-3000 |
VGALW-5A-2000 |
VGALW-5A-1500 |
VGALW-5A-1000 |
Model |
|
3000 w |
2000 w |
1500 w |
1000 w |
Laser Power |
|
Fiber laser |
Laser Source |
|||
|
Fiber laser 1080 nm |
Laser Wavelength |
|||
|
M2 Less than 1.3 |
Beam Quality |
|||
|
Continuous |
Laser Mode |
|||
|
1-50000 Hz |
Pulse Frequency |
|||
|
0 to 100% |
Power Adjustment Capability |
|||
|
0.2-5 mm |
Weld Spot Diameter |
|||
|
200/300 mm |
Focal Distance |
|||
|
Equipped with Red Light Indicator |
Weld Location Adjustment |
|||
|
Viewing the welding site through a camera |
Weld Location Display |
|||
|
Water-Cooled Chiller |
Cooling System |
|||
|

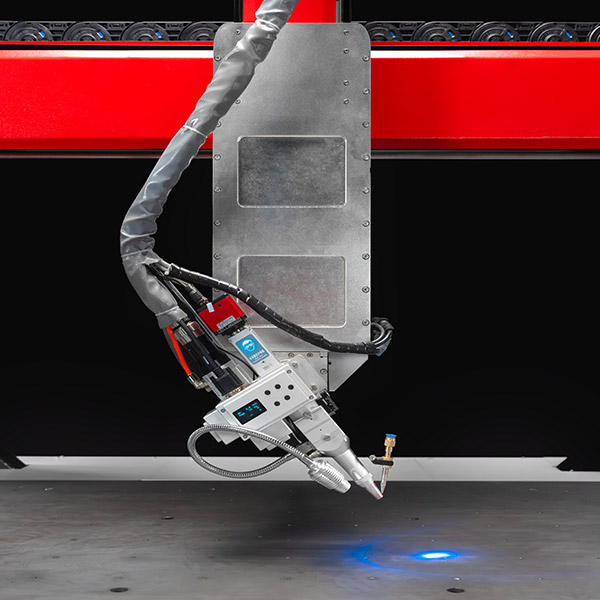

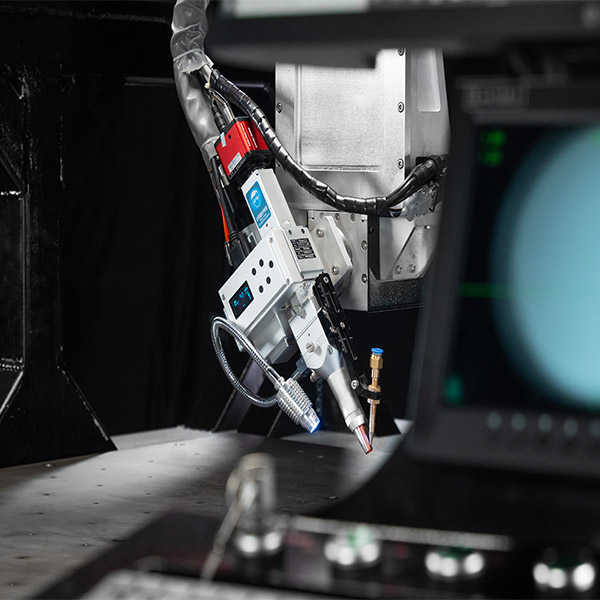

Dual-Motor Wobble Welding Head Brand QILIN |
Welding Head |
|||
|
Up to 150mm/s |
Average Welding Speed |
|||
|
±0.01 mm |
Positioning Accuracy on Axes |
|||
|
(X=1000mm , Y= 1000 mm , Z= 300mm) |
Linear Motion Axes |
|||
|
A=±360° , B=±45° |
Rotary motion axes |
|||
|
8kw |
7kw |
5.5kw |
4kw |
Power Consumption |
|
AC 360 |
AC 360 V |
AC 220V 50/60 Hz |
Power Supply |
|
