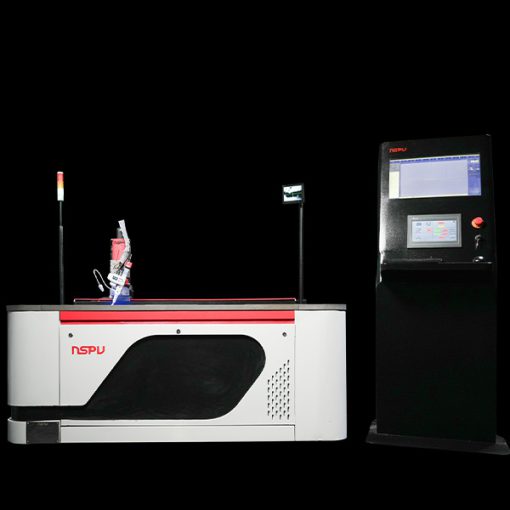

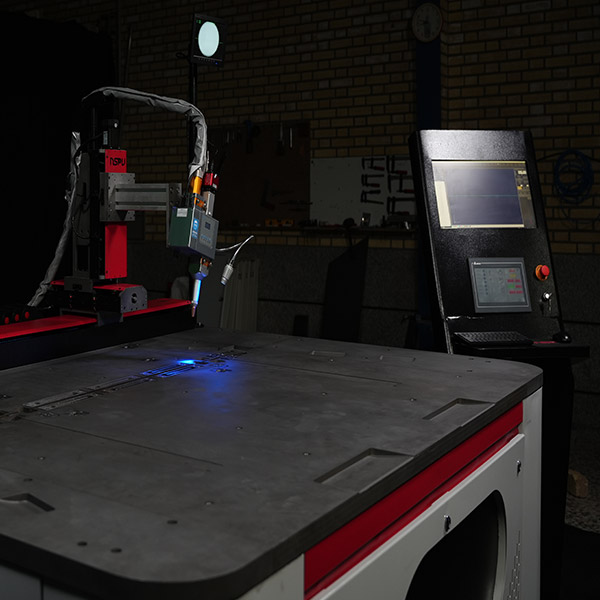

TWB laser welding machine
ویژگی های محصول
- Manual Loading and Adjustment of Sheets
- Precise Adjustment of the Weld Line Using Pneumatic Indicators
- Smart Control of the Device with PLC

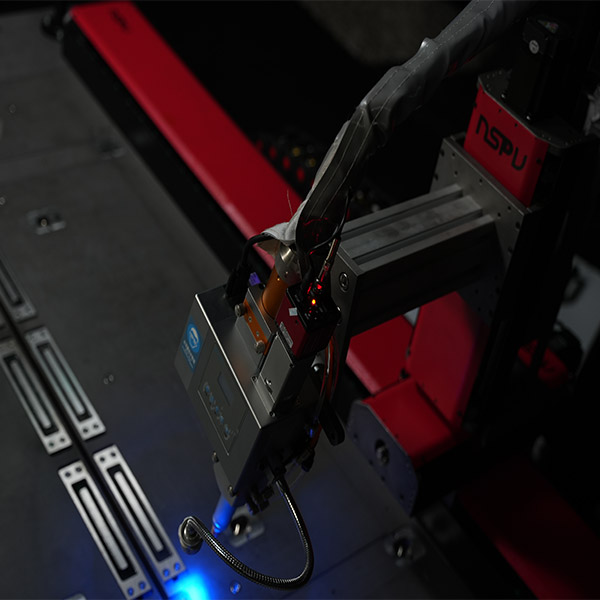

- Magnetic and Automatic Sheet Clamping
- Welding of Sheets with Various Thicknesses and Different Materials
- Customizable Motion Axes
- Ability to Customize the Machine Based on Sheet Type and Dimensions
- Manual Angle Adjustment of the Welding Head.
Technical specifications of TWB laser welding machine
|
V-TWB-ALW-3A-3000 |
V-TWB-ALW-3A-2000 |
Model |
|
3000 w |
2000 w |
Laser Power |
|
Fiber laser |
Laser Source |
|
|
Fiber laser 1080 nm |
Laser Wavelength |
|
|
M2 Less than 1.3 |
Beam Quality |
|
|
Continuous |
Laser Mode |
|
|
1-50000 Hz |
Pulse Frequency |
|
|
0 to 100% |
Power Adjustment Capability |
|
|
0.2-5 mm |
Weld Spot Diameter |
|
|
200/300 mm |
Focal Distance |
|
|
Equipped with Red Light Indicator |
Weld Location Adjustment |
|
|
Viewing the welding site through a camera |
Weld Location Display |
|
|
Water-Cooled Chiller |
Cooling System |
|
|

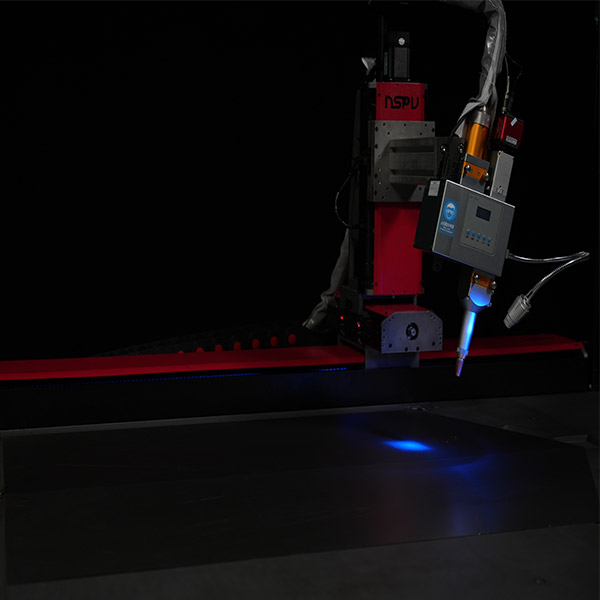

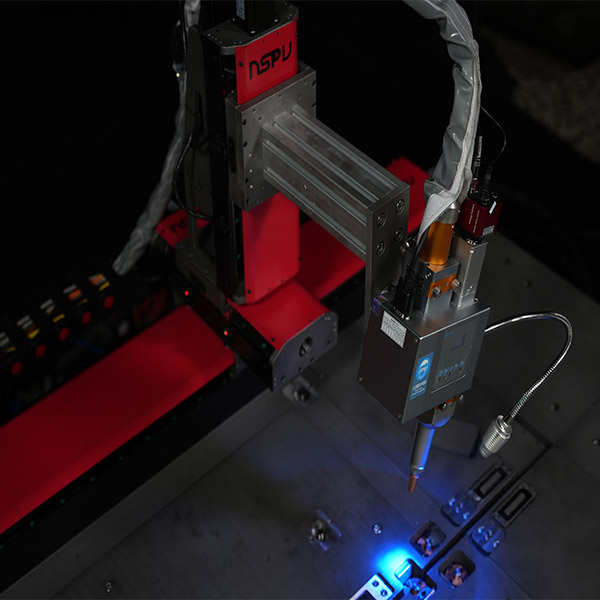

Dual-Motor Wobble Welding Head Brand QILIN |
Welding Head |
|
|
Up to 150mm/s |
Average Welding Speed |
|
|
±0.01 mm |
Positioning Accuracy on Axes |
|
|
(X=1500mm , Y= 100 mm , Z= 100mm) |
Linear Motion Axes |
|
|
1700mm*2200mm*1722mm |
Machine Dimensions |
|
|
2500kg |
Machine Weight |
|
|
8kw |
7kw |
Power Consumption |
|
AC 360V |
AC 360V |
Power Supply |
